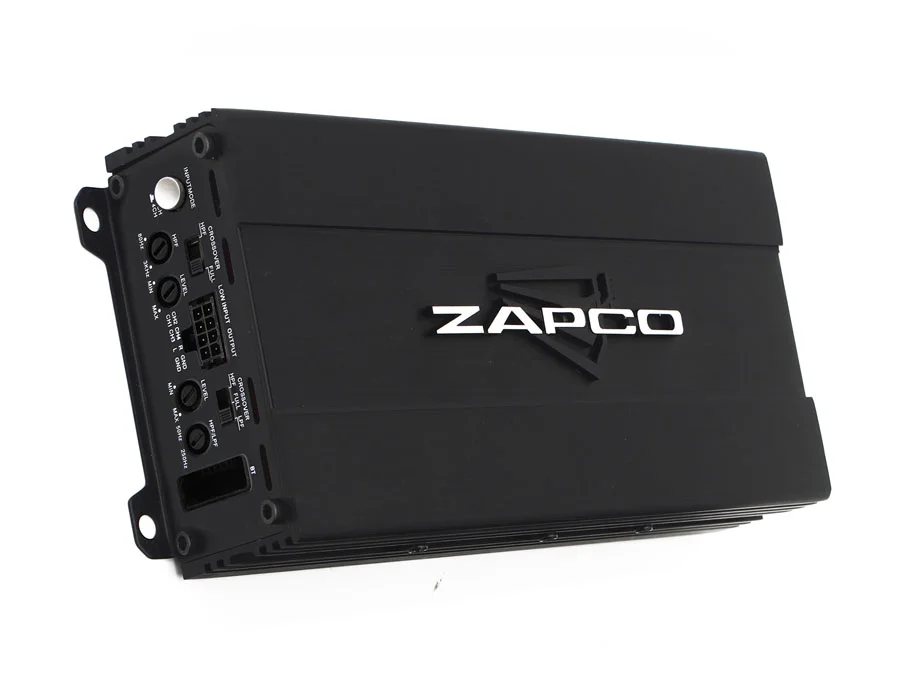

    Zapco - ST-104D SQ MINI - Class D, 4-Ch, optional HD-BT Power 2Ω: 4 x 120W, 4Ω: 4 x 95W

    Zapco - ST-104D SQ MINI - Class D, 4-Ch, optional HD-BT Power 2Ω: 4 x 120W, 4Ω: 4 x 95W

    by Zapco
    $555.56 - $555.56
    $555.56
    $555.56 - $555.56
    $555.56

    • Configuration: 4-Channel, Full-Range, Class D Mini Amp
    • Power Output:
      • 120 W × 4 @ 2 Ω
      • 95 W × 4 @ 4 Ω
      • Bridged Output: 240 W × 2 @ 4 Ω
    • THD (rated power): < 0.1%
    • Signal-to-Noise Ratio: > 90 dB
    • Frequency Response: 15 Hz – 30,000 Hz ±1 dB
    • Input Sensitivity: 0.25 V – 5 V
    • Input Modes: 2-Channel / 4-Channel selectable

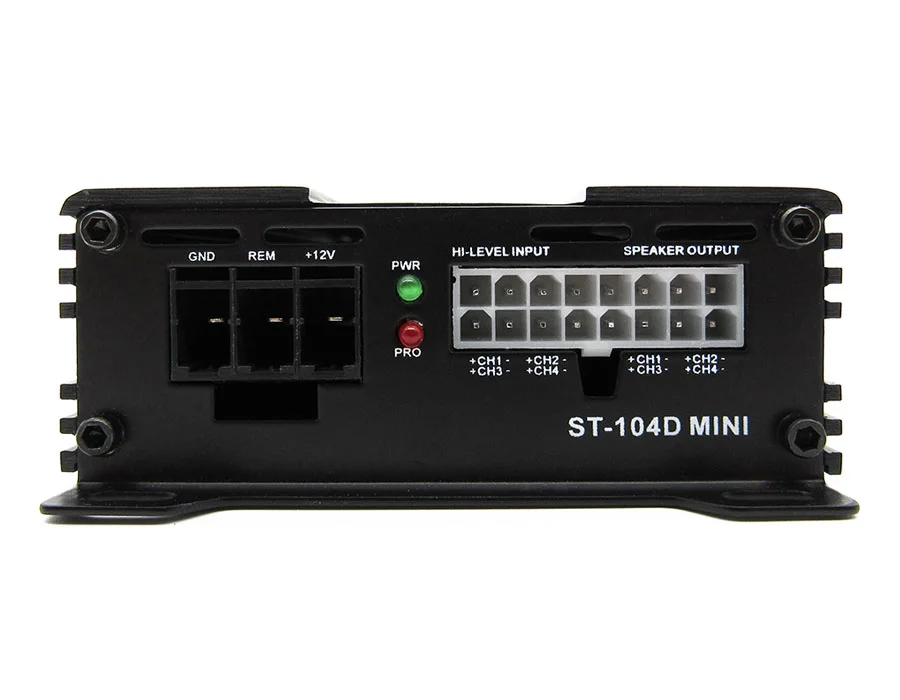

    • Inputs: RCA and Speaker-level inputs

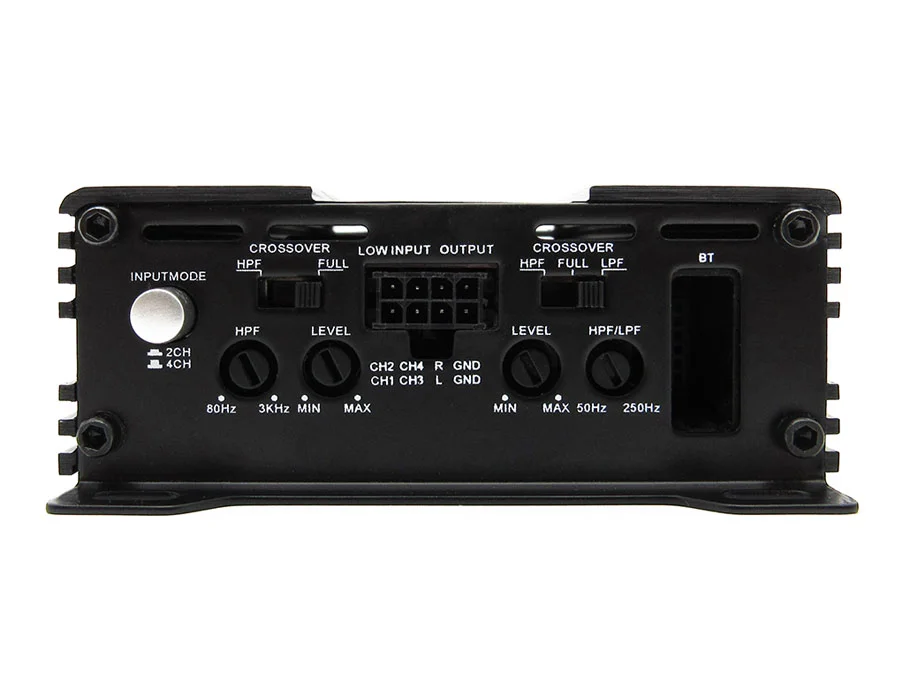

    • Crossover: Variable electronic crossover
    • Auto-On: Yes (via speaker-level input)
    • Optional Module: HD Bluetooth (HD-BT II-A) support
    • Dimensions:
      • Net: 95 mm × 37 mm × 214 mm
      • Overall (with end caps): 95 mm × 37 mm × 236 mm
    • Other Features: Micro chassis design, variable gain control
