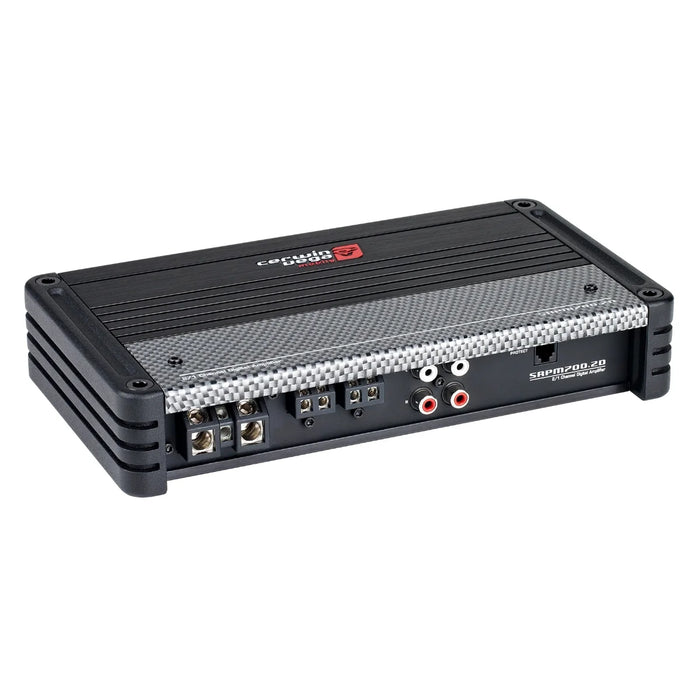

Cerwin Vega - SRPM700.2D - 2 Channel Full Range Digital Amplifier

Power Output (RMS):
• 200W × 2 @ 4Ω
• 350W × 2 @ 2Ω
• 700W × 1 bridged @ 4Ω

Frequency Response: 10 Hz – 33 000 Hz

Crossover: Fully variable, 12 dB/octave (35 Hz – 350 Hz)

Total Harmonic Distortion (THD): 0.05% @ 1 kHz, 4 Ω

Signal to Noise Ratio: 77.2 dBA @ 1W

Input Sensitivity:
• Low Level: 0.2 mV – 10.0 V
• High Level: Up to 12 V

Input Impedance: 22 kΩ

Output Impedance: 0.047 Ω

Damping Factor (50 Hz @ 4Ω): > 250

Supply Voltage Range: 10V – 17V DC

Idle Current Draw: ~0.7 A

Protection & Features:
• Thermal, overload, and short circuit protection
• Soft-start turn-on
• LED indicators: power / protect / clipping
• Selectable turn-on modes: REM / VOX / DC offset
• Top-mounted controls
• Compact design with single-sided connections
• Conformal coated PCB for moisture / vibration protection

Dimensions (L × W × H): 8.66″ × 5.28″ × 1.75″

Weight: ~2.0 kg
