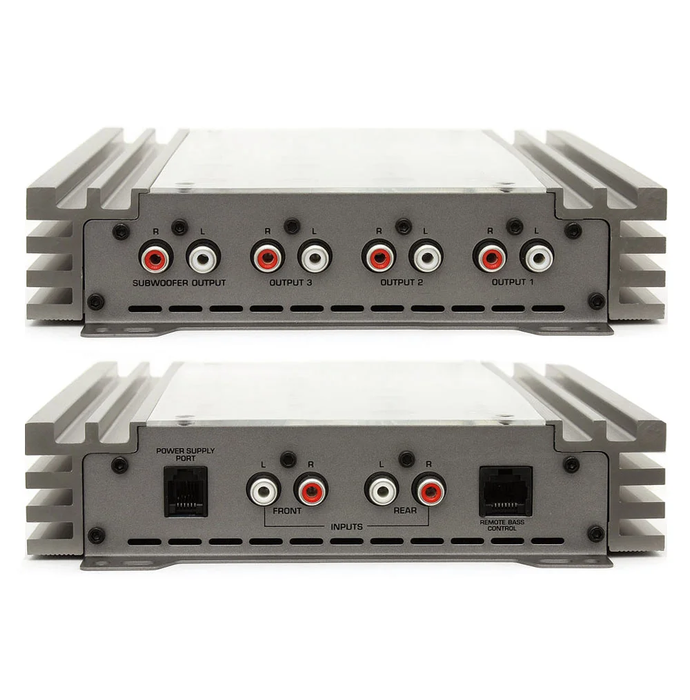

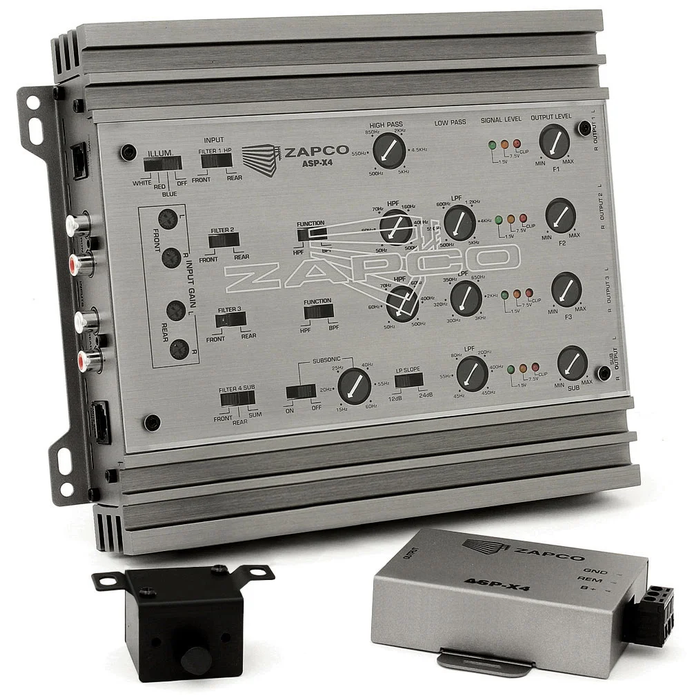

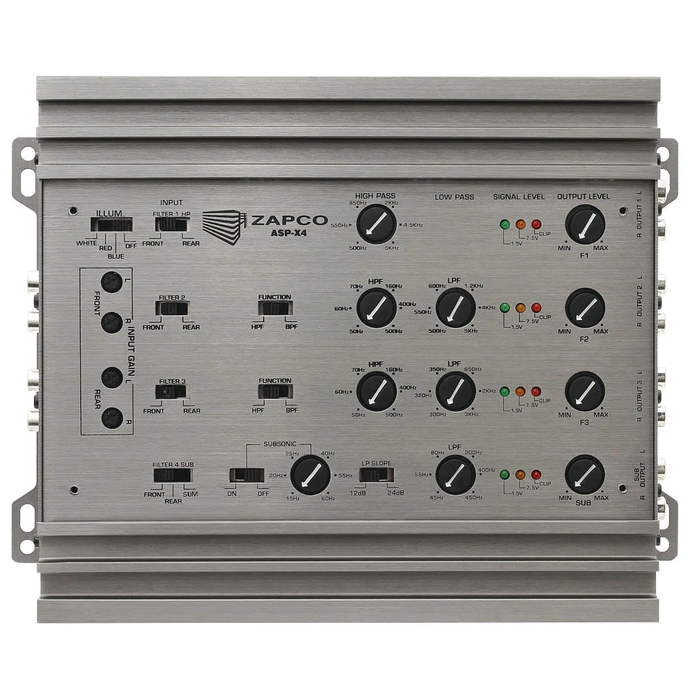

    Zapco - ASP-X4 - 2/3/4-Way Electronic Crossover 9.5V Line Driver

    Zapco - ASP-X4 - 2/3/4-Way Electronic Crossover 9.5V Line Driver

    by Zapco
    $555.56 - $555.56
    $555.56
    $555.56 - $555.56
    $555.56

    The Zapco ASP-X4 is a flexible, high-performance crossover module designed for sophisticated audio systems. With modes for 2-, 3-, or 4-way configurations, adjustable filter slopes, and a high-voltage 9.5V line driver, it delivers clean, precise signal routing and excellent compatibility with amplifiers and DSPs. Great for advanced installs where crossover control is essential.

    • Model: ASP-X4
    • Type: Multi-mode electronic crossover + built-in 9.5V line driver
    • Modes: 2-way, 3-way, or 4-way crossover selectable
    • Output Voltage: Up to 9.5 V RMS
    • Inputs: Stereo RCA (L + R)
    • Outputs: Up to four RCA outputs (for full multichannel setups)
    • Controls & Features:
     • Adjustable crossover frequencies (HPF / LPF) per channel
     • Selectable slope configurations (6 / 12 / 18 / 24 / 36 / 48 dB/octave)
     • Phase control options (0° / 180°)
     • Variable input gain & output trims per channel
    • Frequency Response: 10 Hz – 30,000 Hz ±1 dB
    • Signal-to-Noise Ratio: > 110 dB
    • Total Harmonic Distortion (THD): < 0.01%
    • Construction: Rigid aluminum chassis, shielded internal layout
    • Connectors: Gold-plated RCA input / output jacks
    • Power Supply: 12V DC
    • Dimensions: approx. 7.5″ × 1.25″ × 4.25″
