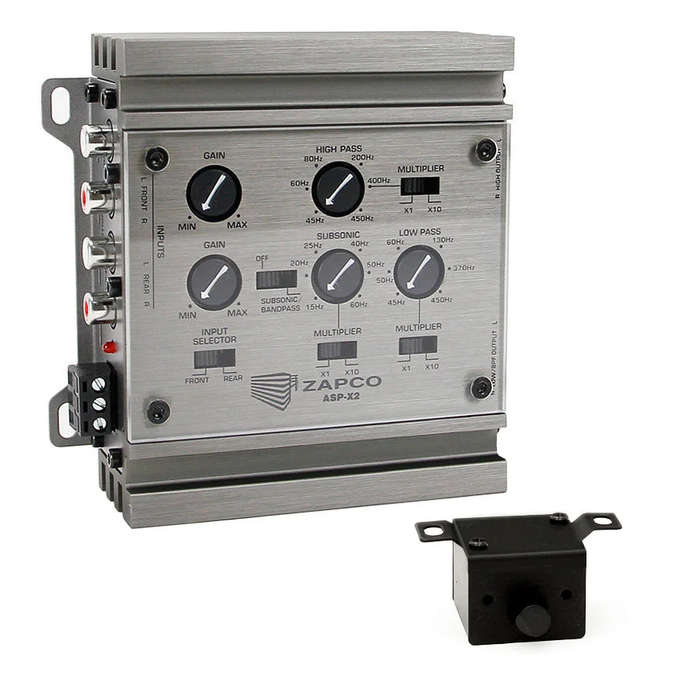

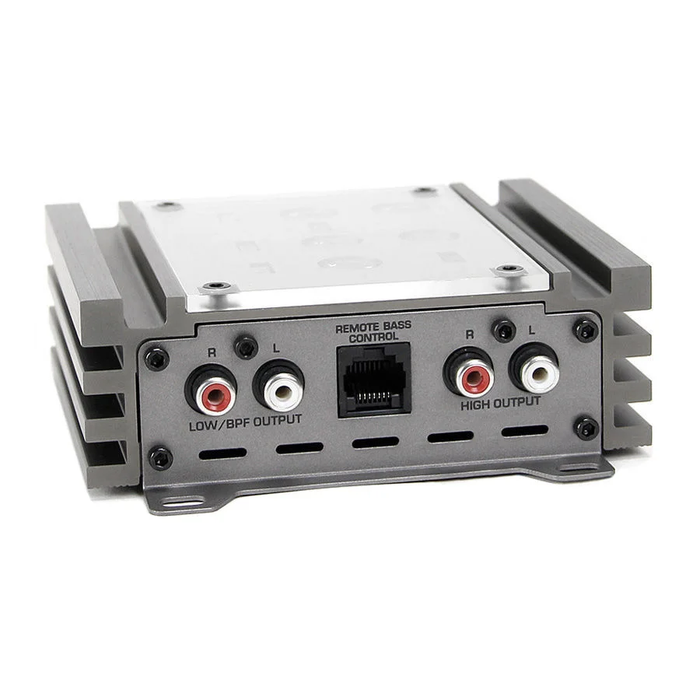

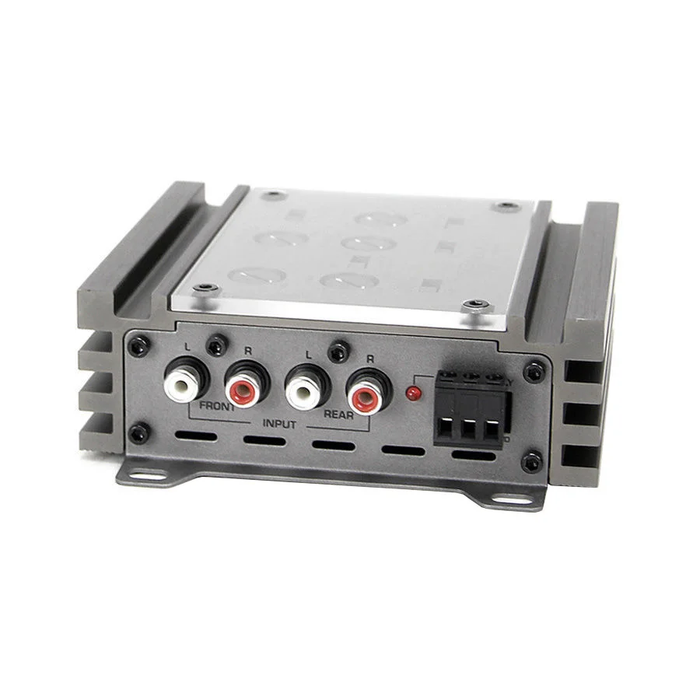

    Zapco - ASP-X2 - 2-Way Electronic Crossover 9.5V Line Driver

    Zapco - ASP-X2 - 2-Way Electronic Crossover 9.5V Line Driver

    by Zapco
    Sold out
    $277.78 - $277.78
    $277.78
    $277.78 - $277.78
    $277.78

    The Zapco ASP-X2 is designed for clean signal management in two-way systems. It combines precise electronic crossover functionality with a high-voltage 9.5V line driver to feed amplifiers with strong, noise-free signals. Perfect for front / mid systems where filter precision and signal clarity matter.

    • Type: 2-Way electronic crossover + line driver
    • Output Voltage: Up to 9.5 V RMS
    • Channels: 2 outputs (L + R)
    • Inputs: Stereo RCA inputs
    • Crossover Control:
     • Adjustable high-pass and low-pass filters
     • Variable crossover frequency selection
     • Slopes (e.g. 6 / 12 / 18 / 24 dB/oct) selection
    • Phase Control: 0° / 180° switch
    • Level Controls: Input gain and output level controls
    • Frequency Response: 10 Hz – 30 kHz
    • Signal-to-Noise Ratio: > 110 dB
    • THD: < 0.01%
    • Construction: Compact aluminum chassis
    • Connectors: Gold-plated RCA inputs/outputs
    • Power: 12V DC operation
    • Dimensions: Approximately 7.5″ × 1.25″ × 4.25″
