Specifications

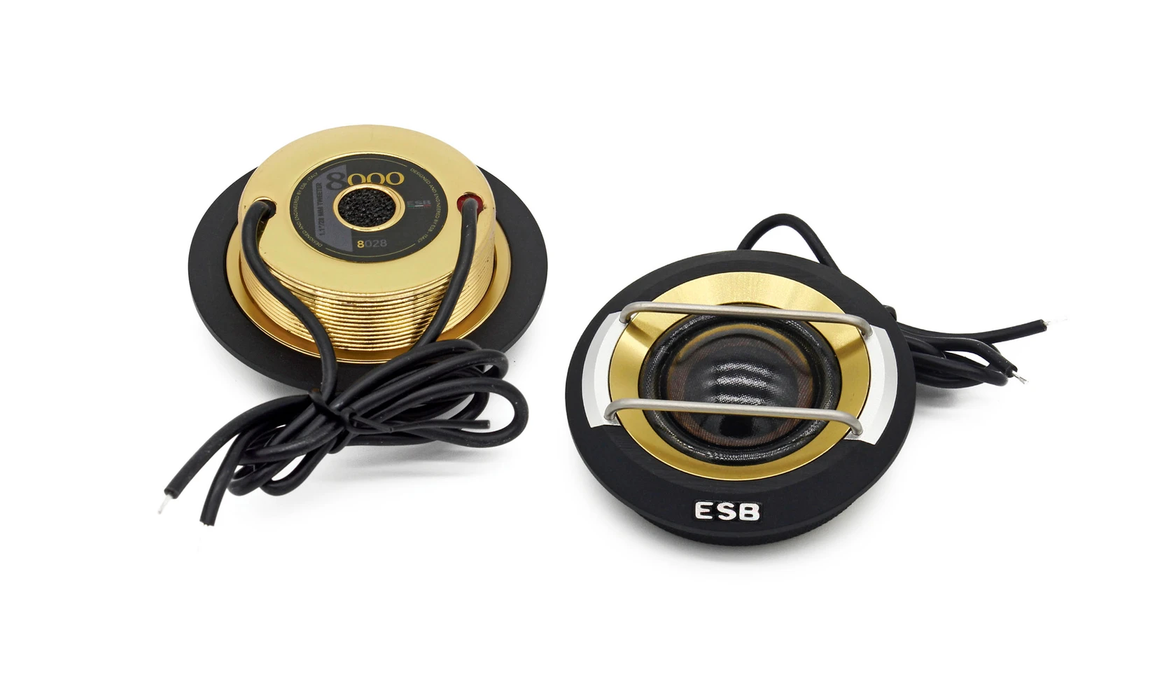

Type: High-Frequency Tweeter
Series: ESB 8000 Series Precision
Tweeter Size: 1.1" (28 mm)
Dome Material: Silk Soft-Dome, Hand-Coated
Voice Coil Diameter: 1.1" (28 mm)
Voice Coil Construction: Copper on Kapton High-Temperature Former
Cooling System: Ferrofluid Voice Coil Cooling
Motor Structure: Neodymium Magnet Assembly
Waveguide: Low-Diffraction Faceplate with Controlled Dispersion
Nominal Impedance: 4 Ω
Power Handling (RMS): 80 W
Power Handling (Peak): 160 W
Sensitivity (1W/1m): 92 dB
Frequency Response: 1.8 kHz – 24 kHz
Crossover Recommendations
• Recommended High-Pass Filter: 2.5 kHz or higher
• Slope: 12–24 dB/Octave (depending on system tuning)
Physical Specs
Housing: Precision Machined Aluminum Faceplate
Mounting Depth: 0.9" (23 mm)
Mounting Cutout Diameter: 1.4" (36 mm)
Overall Diameter: 2.1" (54 mm)
Wiring Termination: Gold-Plated Solder Tabs
Weight: 0.35 lbs (each)
Warranty: 1-Year Manufacturer Warranty
Performance Characteristics
• Smooth, detailed high-frequency response without harshness.
• Large 28 mm dome offers slightly warmer, richer upper frequencies compared to 25 mm domes.
• Optimized dispersion pattern improves imaging and spatial detail.
• Neodymium motor ensures fast transient response and dynamic articulation.
Key Features
• Silk Dome High-Frequency Driver – Musical, refined treble presentation.
• Neodymium Motor – Compact and powerful for high efficiency.
• Ferrofluid Cooling – Maintains clarity during extended high-output use.
• Low-Diffraction Faceplate – Improves imaging accuracy and stage cohesion.
• ESB Acoustic Tuning – Natural timbre, non-fatiguing listening, studio-grade voicing.
System Integration Notes
• Ideal Pairing: ESB K2, K3, 5000 Series, 8000 Series midrange & midbass drivers.
• Best Use: High-end car audio soundstage, Harley fairings, pillar or dash pods.
• Amp Power Range: 75–150 W RMS recommended for optimal transparency.
• Installation Time: 20–45 minutes depending on surface or flush mount.
Pro Tip:
Aim the tweeter directly toward the listener’s ear path (not straight forward) to maximize imaging precision—especially in motorcycle and near-field seating environments.
