Specifications

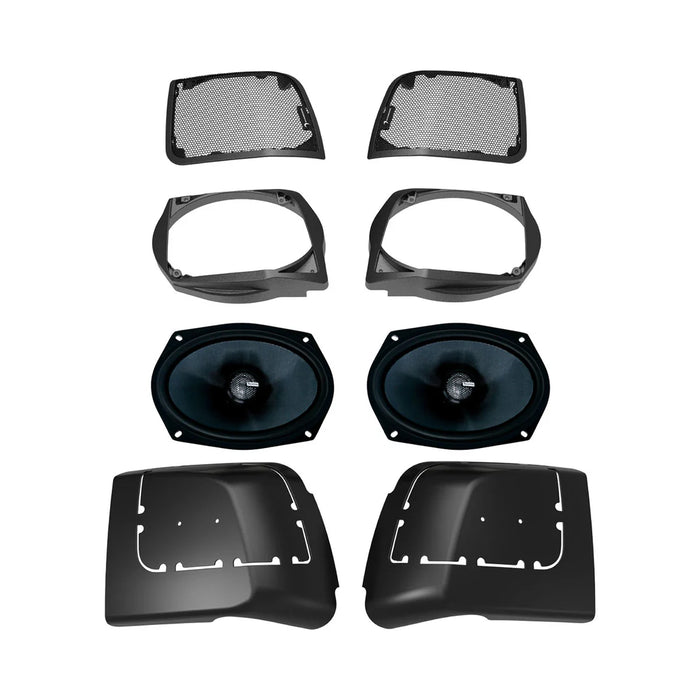

Type: Motorcycle Lid Speaker Kit (Complete System)
Series: Diamond Audio Motorsport MS Series
Vehicle Compatibility:
• 2014–2023 Harley-Davidson® Touring Models (Street Glide®, Road Glide®, Electra Glide®, Ultra, and similar bag designs)
Speaker Type: 2-Way High-Output CoaxSub Speakers
Speaker Size: 6" × 9" (152 × 229 mm)
Speaker Impedance: 4 Ω
Power Handling (RMS): 125 W
Power Handling (Peak): 250 W
Sensitivity (1W/1m): 93.5 dB
Frequency Response: 45 Hz – 20 kHz
Voice Coil Diameter: 1.66" (42 mm)
Tweeter Type: 1" Titanium Dome Tweeter (Integrated Coaxially)
Cone Material: Kevlar-Reinforced Waterproof Cone
Surround Material: Rubber Surround
Basket: Heavy-Duty Composite Frame
Magnet Structure: High-Energy Ferrite Motor
Grille Type: Precision-Fit Harley-Davidson® Style Grilles (Pre-Assembled)
Enclosure Type: Custom Molded Lid Enclosures (Paintable ABS Composite)
Finish: Matte Black OEM-Grade Textured Surface
Mounting Hardware: Stainless Steel Screws, Rubber Gaskets, and Sealing Trim Rings (Included)
Wiring: Pre-Terminated Plug-and-Play Harness
Weather Resistance: IP65 Rated (Waterproof, UV, and Vibration Resistant)
Weight: 12.6 lbs (Complete Kit)
Warranty: 1-Year Manufacturer Warranty
Performance Specs
• Designed specifically for Harley-Davidson® touring saddlebags for a clean OEM-style fit.
• Includes Diamond Audio MS69CX coaxial drivers for loud, detailed, and full-range output.
• Kevlar-reinforced cone provides rugged durability and high SPL performance.
• Titanium tweeter ensures crisp highs that cut through engine and wind noise.
• Factory-style grilles offer a seamless visual match to Harley touring bag contours.
Key Features
• Complete Plug-and-Play Kit – Includes pre-mounted speakers, grilles, and harnesses.
• High-Output 2-Way CoaxSub Design – Combines deep midbass with bright, detailed highs.
• Marine-Grade Build – Waterproof and UV-resistant for extreme riding conditions.
• Custom Harley Fitment – Precision molded for 2014+ saddlebags with no cutting required.
• Pre-Wired Harness – Reduces installation time and eliminates wiring guesswork.
• Paintable ABS Enclosures – Match your motorcycle’s finish or keep OEM black.
• Diamond Audio Engineering – Tuned for motorcycle acoustics and outdoor clarity.
Performance Integration Notes
• Ideal Pairing: Amplifier rated 100–150 W RMS per channel @ 4 Ω (Diamond DES400.2D or DXM800.4D recommended).
• System Compatibility: Designed to integrate with Diamond’s MS or HXM amplifier lines and DSP-equipped systems.
• Recommended Use: Touring bag lid upgrade for high-output, full-range sound on the road.
• Installation Time: Approx. 1.5–2 hours.
• Pro Tip: For best performance, pair with a properly tuned DSP or high-pass crossover set at 60–80 Hz to protect the midbass drivers and ensure clean output at high volume.
